Enhancing Image Resolution of Solar Magnetograms: A Latent Diffusion Model Approach

The spatial properties of the solar magnetic field are crucial to decoding the physical processes in the solar interior and their inter planetary effects. However, observations from older instruments, such as the Michelson Doppler Imager (MDI), have limited spatial or temporal resolution, which hinders the ability to study small-scale solar features in detail. Super resolving these older datasets is essential for uniform analysis across different solar cycles, enabling better characterization of solar flares, active regions, and magnetic network dynamics. In this work, we introduce a novel diffusion model approach for Super-Resolution and we apply it to MDI magne tograms to match the higher-resolution capabilities of the Helioseismic and Magnetic Imager (HMI). By training a Latent Diffusion Model (LDM)withresiduals on downscaled HMI data and fine-tuning it with paired MDI/HMI data, we can enhance the resolution of MDIobservations from 2”/pixel to 0.5”/pixel. We evaluate the quality of the reconstructed images by means of classical metrics (e.g., PSNR, SSIM, FID and LPIPS) and we check if physical properties, such as the unsigned magnetic flux or the size of an active region, are preserved. We compare our model with different variations of LDM and Denoising Diffusion Probabilistic models (DDPMs), but also with two deterministic architectures already used in the past for performing the Super-Resolution task. Furthermore, we show with an analysis in the Fourier domain that the LDM with residuals can resolve features smaller than 2”, and due to the probabilistic nature of the LDM, we can asses their reliability, in contrast with the deterministic models. Future studies aim to super-resolve the temporal scale of the solar MDI instrument so that we can also have a better overview of the dynamics of the old events.

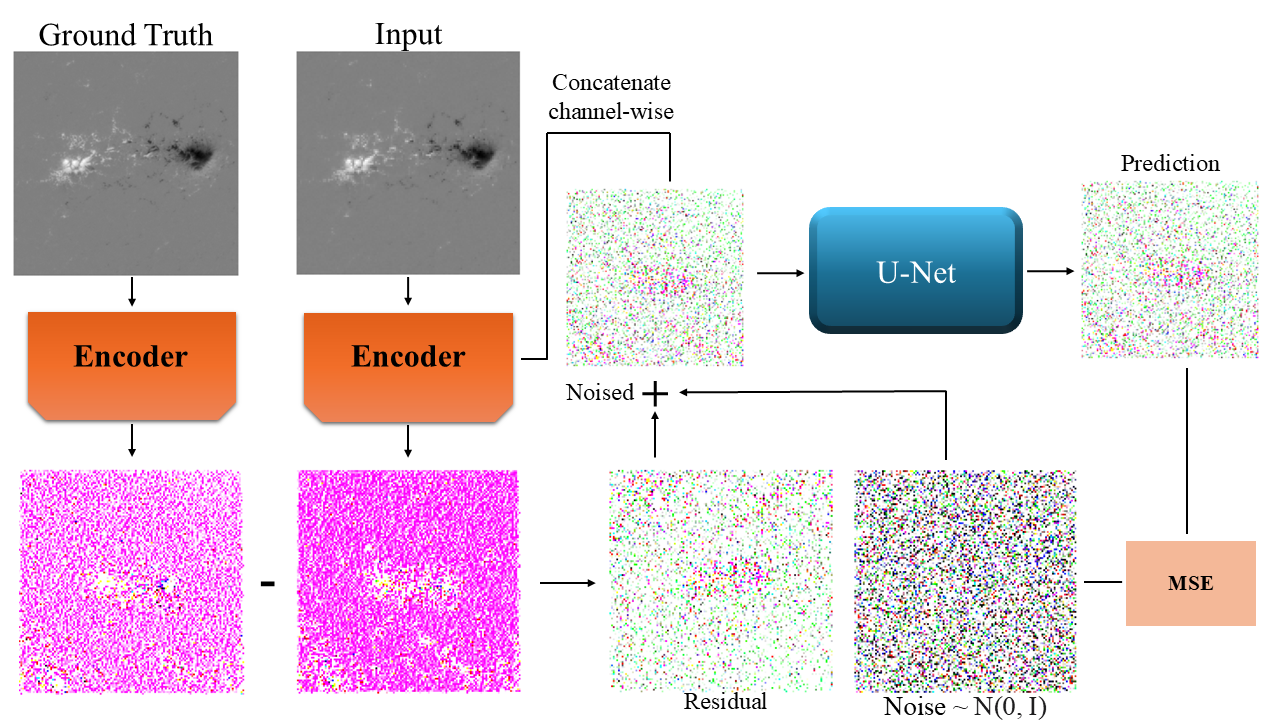

Training procedure

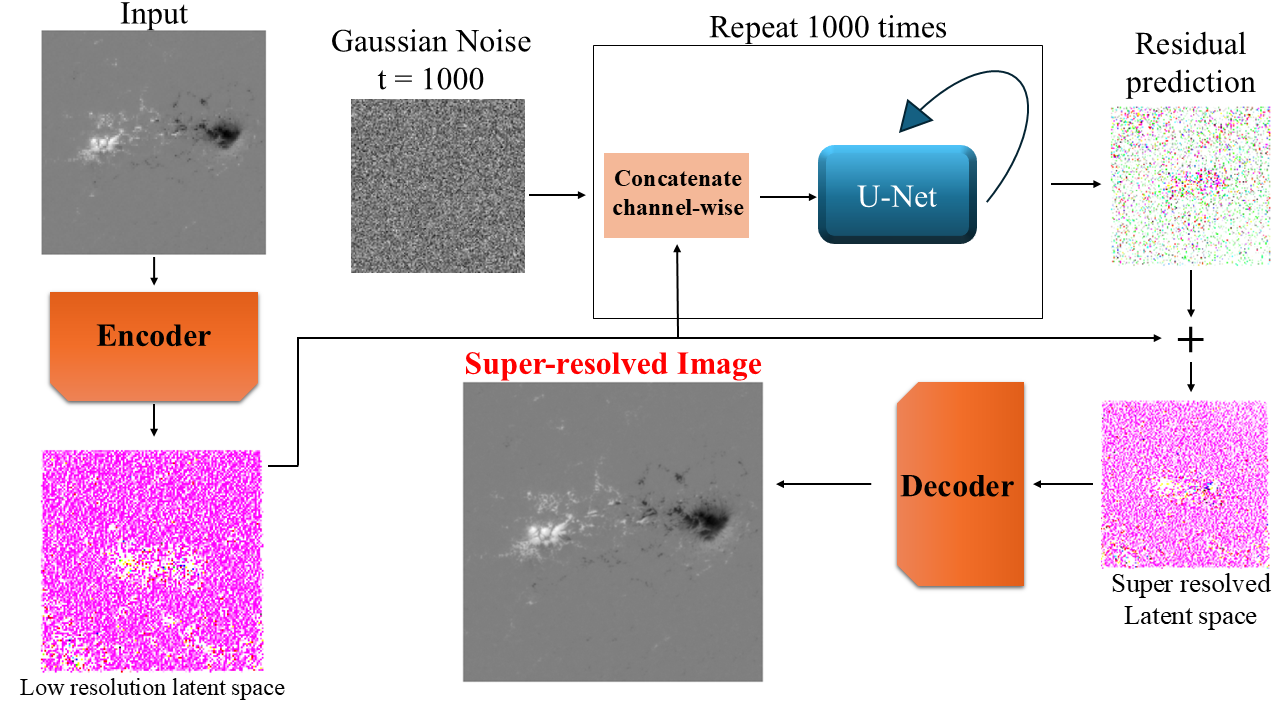

Inference procedure

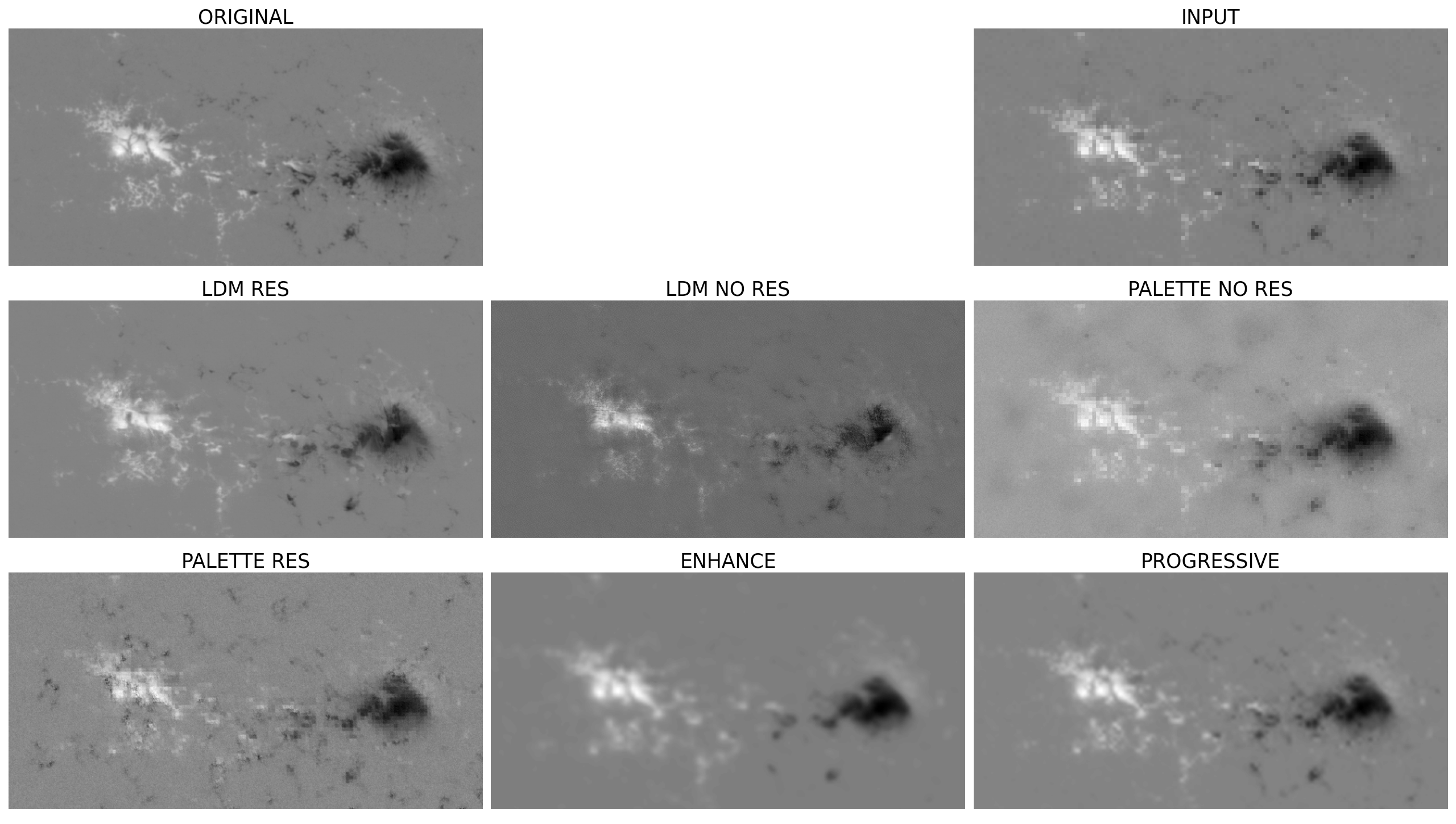

Example

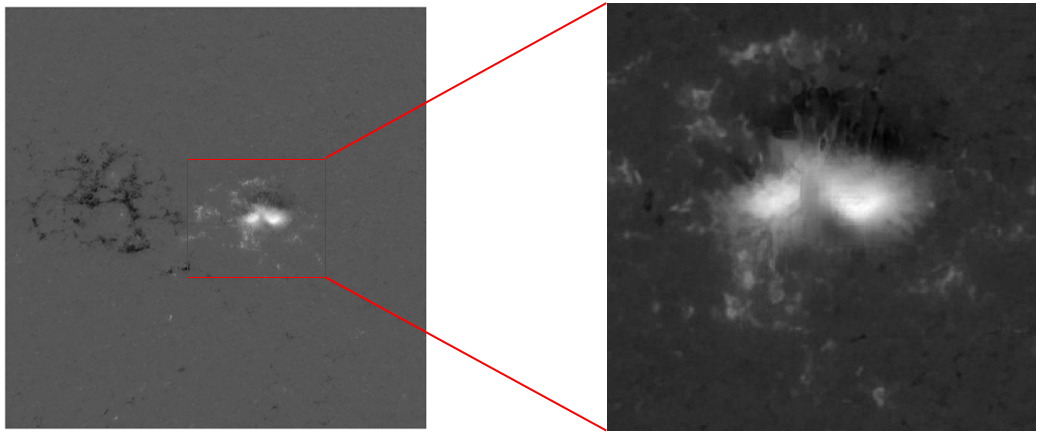

Latent diffusion model with residuals on MDI

Recommended citation: Ramunno, F. P., Massa, P., Kinakh, V., Panos, B., Csillaghy, A., & Voloshynovskiy, S. (2025). Enhancing Image Resolution of Solar Magnetograms: A Latent Diffusion Model Approach. arXiv preprint. arXiv:2503.24271.
Download Paper
